In order to meet RoHS instruction strictly, Nanjing Sunrise Semiconductor Co.,Ltd. set up the complete management procedure for deleterious hazardous substances, make up excellent green supply chain with the co-operator, at present all the products are accorded with RoHS instructions. |
|

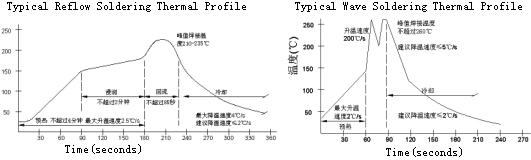

Below is Galaxy's soldering heat standard temperature |
|
 |
|
Max. value of Limited materials in RoHS standard |
| |
| Hg |
0.1% weight |
1000 ppm |
| Cd |
0.01% weight |
100 ppm |
| Pb |
0.1% weight |
1000 ppm |
| Cr +6 |
0.1% weight |
1000 ppm |
| PBB |
0.1% weight |
1000 ppm |
| PBDE |
0.1% weight |
1000 ppm |
|
|
RoHS Escape clause |
| |
Pb can be allowed as a alloy impure element in Cu, the weight should be below 4%; in Steel, the weight should be below 0.35%; in Al, the weight should be below 0.4%. |
| Pb can be allowed in the glass of electron components. |
| Pb can be allowed in electron ceramic products. |
| Pb can be allowed in high temperature soldering. |
|
